Wall-mounted Wifi GPS Inverter
Wall-mounted inverter, can be used in household, communication base station, offset mountain area. Equipped with GPS tracking technology, these inverters can detect your location and adjust their performance accordingly, ensuring optimal energy production and usage in any weather condition or geographic location.
With built-in WiFi connectivity, you can access your inverter’s monitoring system via your smartphone or other mobile device from anywhere, anytime.
Description
Features of Wall-mounted Wifi GPS Inverter
Applicable scenario
Wall-mounted inverter, can be used in household, communication base station, offset mountain area.
GPS Tracking
Equipped with GPS tracking technology, these inverters can detect your location and adjust their performance accordingly, ensuring optimal energy production and usage in any weather condition or geographic location.
Connectivity
With built-in WiFi connectivity, you can access your inverter’s monitoring system via your smartphone or other mobile device from anywhere, anytime.
LCD Display
Equipped with LCD screen to observe the working state.
LFP Battery
Made with high-quality lithium iron phosphate batteries, which have a high safety factor, less prone to thermal runaway, and can have a lifespan of up to 10 years with over 3000 cycles.
Multiple charging modes

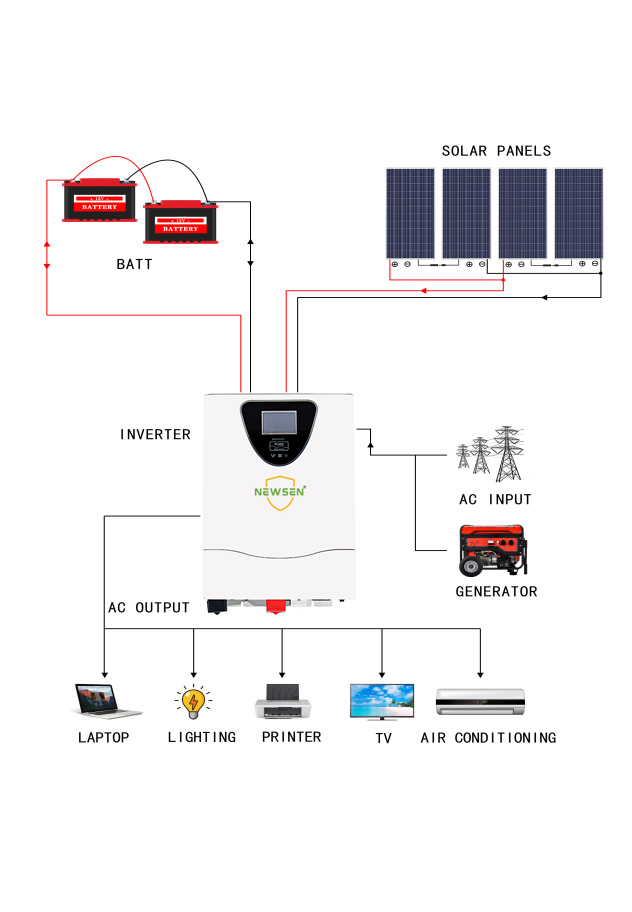

Supports charging through various methods, including solar power, wind power, diesel, and the electricity grid.
Specifications of Wall-mounted Wifi GPS Inverter
| Model | NBT-6 | NBT-1.5 | NBT-30 | NBT-40 | NBT-45 | NBT-46 | |||||
| Rated power | 500W/600W | 1KW/15KW | 2KW/3KW | 3KW/4KW | 4KW/5KW | 6KW/7KW | |||||
| Battery | |||||||||||
| Rated voltage | DC12V/24v | DC24V /48V | DC48V /96V | ||||||||
| Charging voltage | 13.5V/27.5 | 27.5V(±2%) 54V(±2%) | 54V(±2%) 106V(±2%) | ||||||||
| Input | |||||||||||
| Mains input voltage range | 165-260VAC | ||||||||||
| Mains input frequency | 45-50HZ | ||||||||||
| Solar input voltage | 12/24V(18-100VDC) 48V(60-180VDC) | ||||||||||
| Solar output current | 20A-60A | ||||||||||
| Output | |||||||||||
| Voltage range | 220VAC ±5%(Inversion mode） | ||||||||||
| Frequency | 50HZ ±5%(Inversion mode） | ||||||||||
| Output waveform | sine wave | ||||||||||
| Conversion time | <10ms（Typical load） | ||||||||||
| Efficiency | >85%(Negative load） | ||||||||||
| Overload | 110-120%/30S > 160%/300ms | ||||||||||
| Protection function | Battery over voltage and low-voltage protection, overload protection, short circuit protection, over temperature protection, etc | ||||||||||
| Working temperature | 0-40℃ | ||||||||||
| Storage temperature | -15—+50℃ | ||||||||||
| Humidity | 0-90% No frost | ||||||||||
| Size(mm) | 507*360*165 | 567*360*180 | |||||||||
| Weight(kg) | 14 | 16 | 18 | 22 | 32 | 39 | |||||
