Description
Features of Stackable energy storage system
Applicable scenario
Widely used in unstable power grid areas, it can provide stable backup power for residential, hotel, data center, signal base station, breeding farm, greenhouse and other scenarios.
Smart BMS
Real-time protection with overcharging, over discharging, overloading, short-circuit, and over temperature protection functions to safeguard the battery.
Multiple output interface

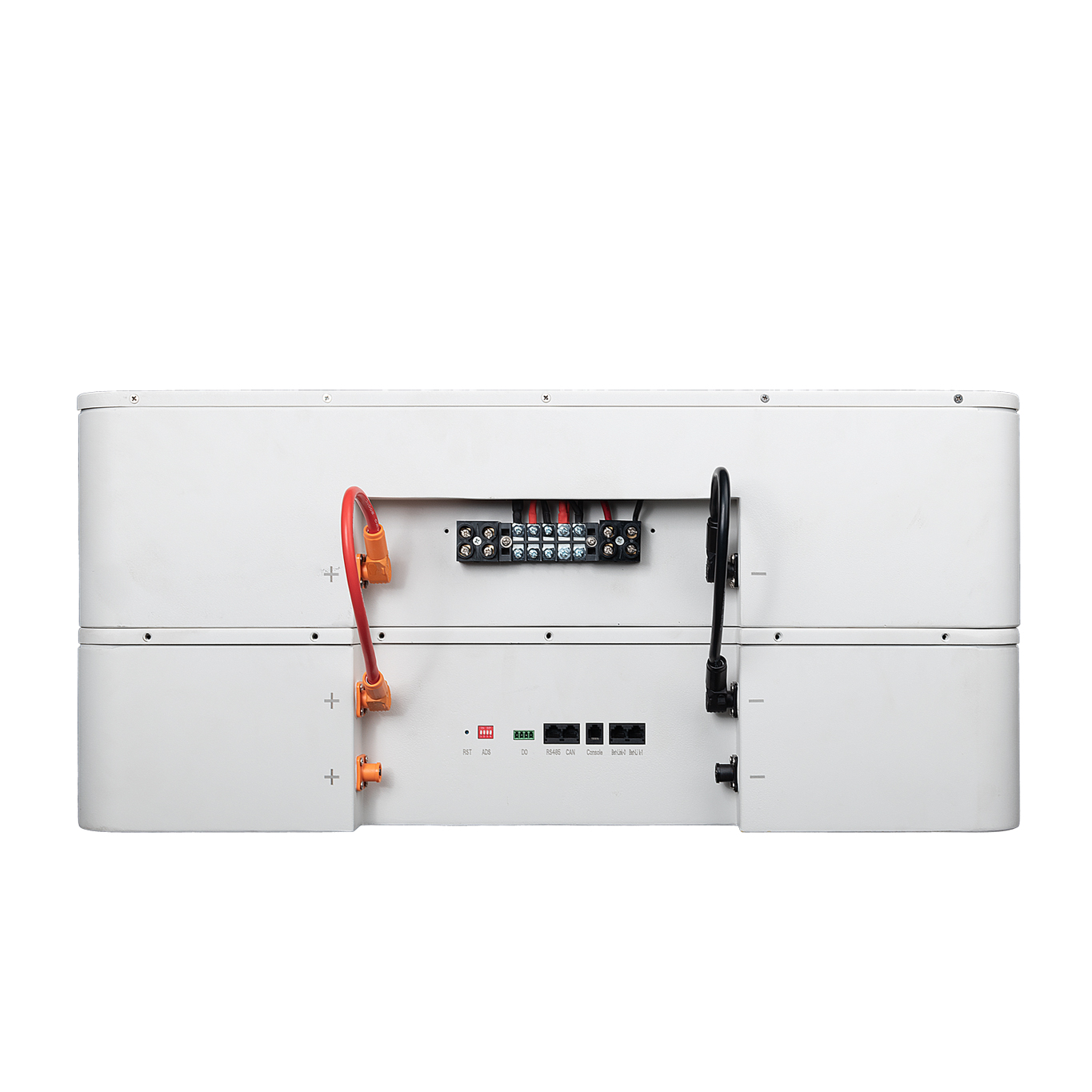

Equipped with RS232, RS485 and CAN communication interface, support for inverter and battery into line real-time communication, monitoring working condition.
Modular design

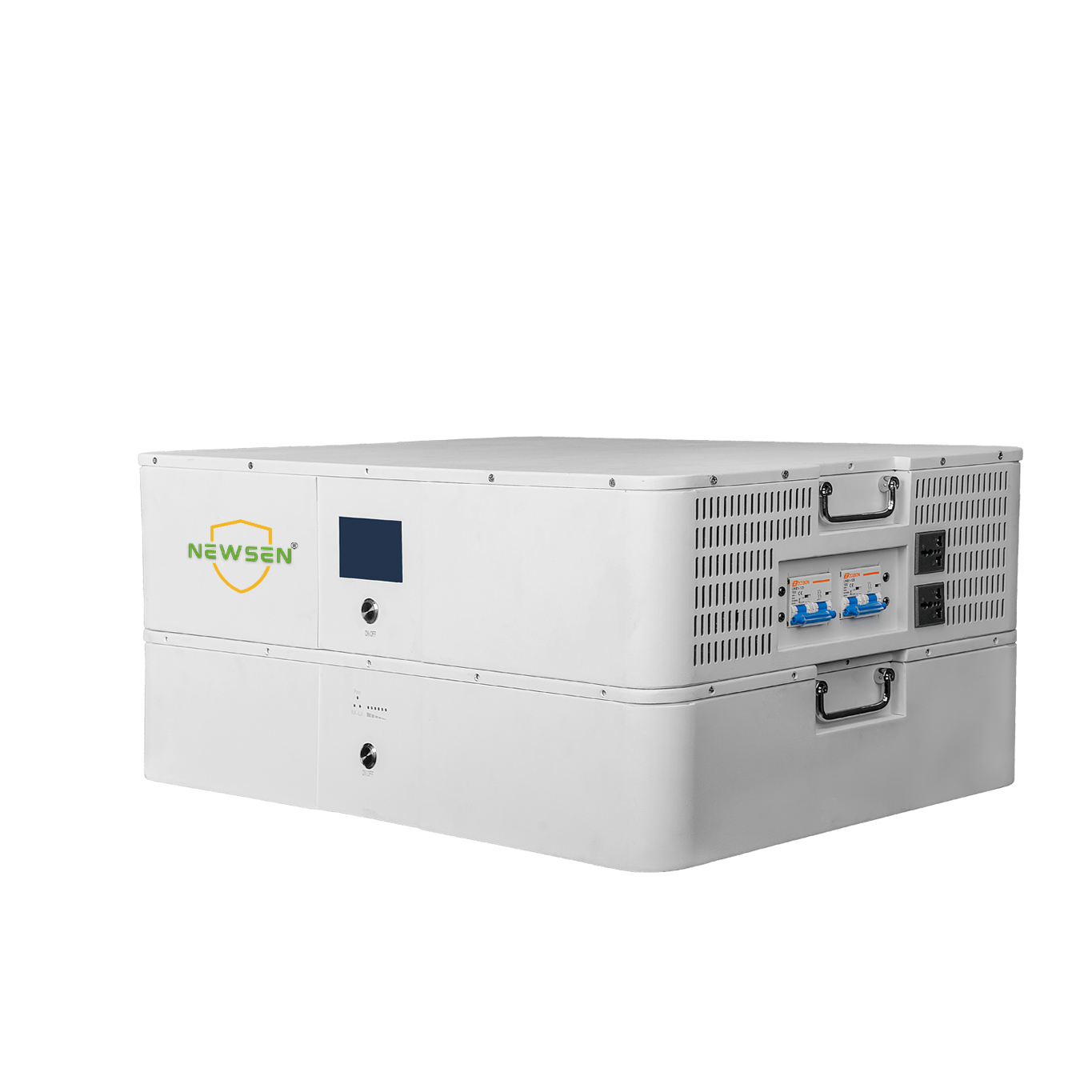

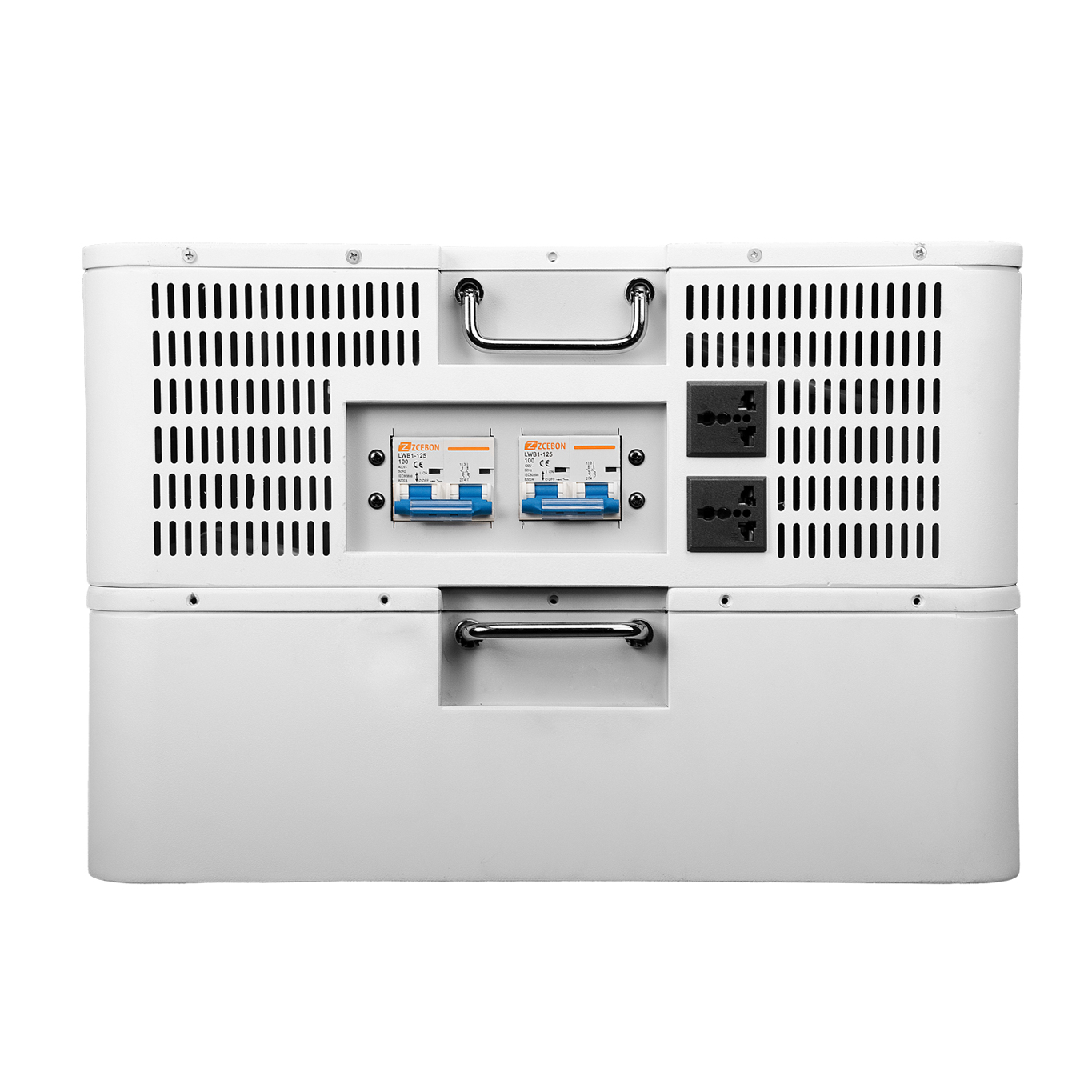

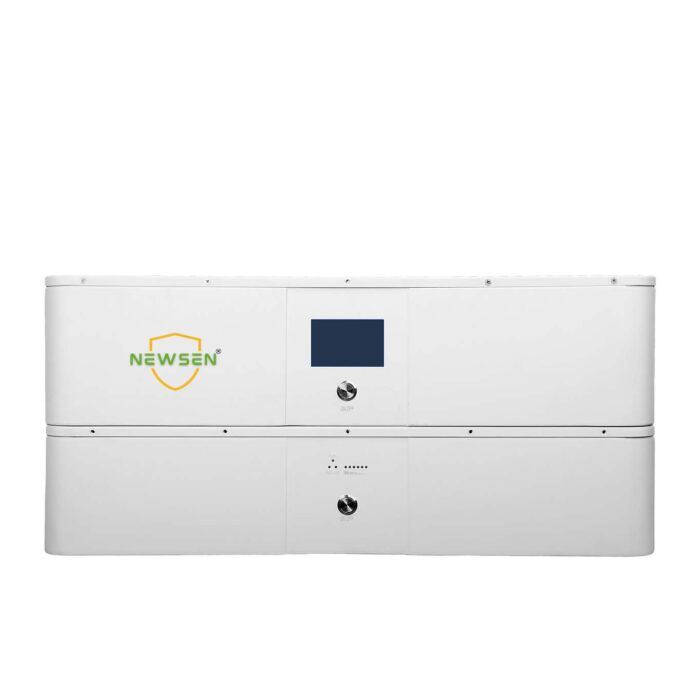

Modular design, top inverter, bottom energy storage battery, low expansion cost, simpler installation.
LFP Battery
Made with high-quality lithium iron phosphate batteries, which have a high safety factor, less prone to thermal runaway, and can have a lifespan of up to 10 years with over 3000 cycles.
Multiple charging modes
Supports charging through various methods, including solar power, wind power, diesel, and the electricity grid.
Specifications of Stackable energy storage system
| Model | T48100 | T48160 | T48200 |
| Nominal voltage | 51.2V | 51.2V | 51.2V |
| Nominal capacity | 100Ah | 160Ah | 200Ah |
| The rated power | 5KWh | 8KWh | 10KWh |
| Continuous charge current | 0-70A | 0-70A | 0-120A |
| Continuous discharge current | 0-100A | 0-100A | 0-150A |
| Weight (KG) | 42.76 | 48.65 | 75.65 |
| Appearance Size (mm) | 620×435×150 | 620×435×150 | 750×500×160 |
| Charging voltage | 53.6V-55.2V(Float charge) 56.8V-57.6V(Equal charge) | ||
| Discharge termination voltage | 40.5V-44.5V | ||
| Charge termination voltage | 57.6V | ||
| Cycle life | ≥3000 times | ||
| Work environment | Temperature: -20°~60°; Humidity: ≤95%; Altitude ≤4000m | ||
| Protection function | Overcharge, overdischarge, short circuit, overload, overtemperature | ||
| Inverter | |||
| Rated power | 3KW | 5KW | 10KW |
| Input voltage | 165VAC-260VAC | ||
| Input frequency | 45Hz-60Hz | ||
| Output voltage voltage | 110/120/220/230/240VAC | ||
| Frequency of output | 50Hz-/60Hz | ||
| Output waveform | Sine wave | ||
| Protection function | High voltage/overload/over-discharge/over-charge, etc | ||
