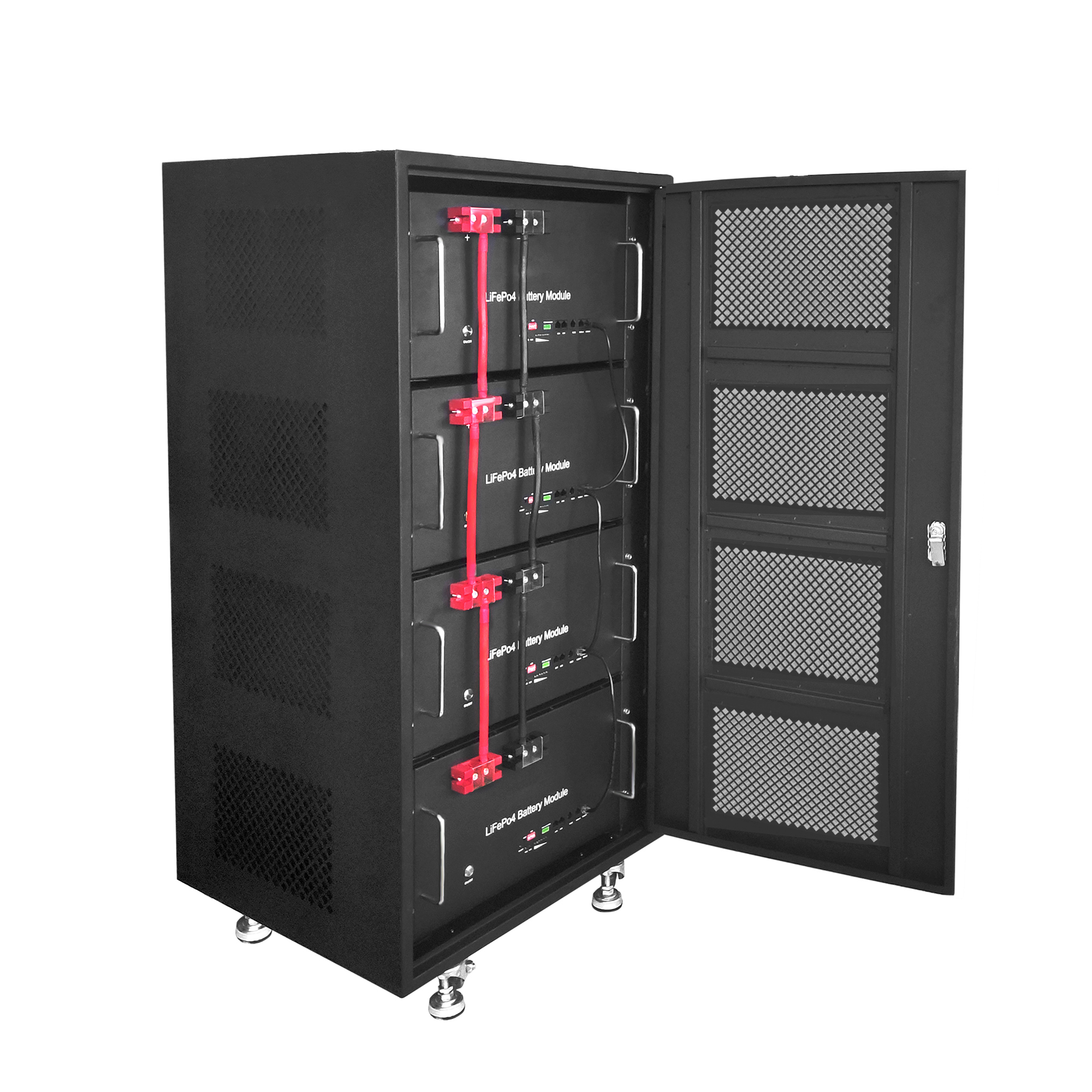

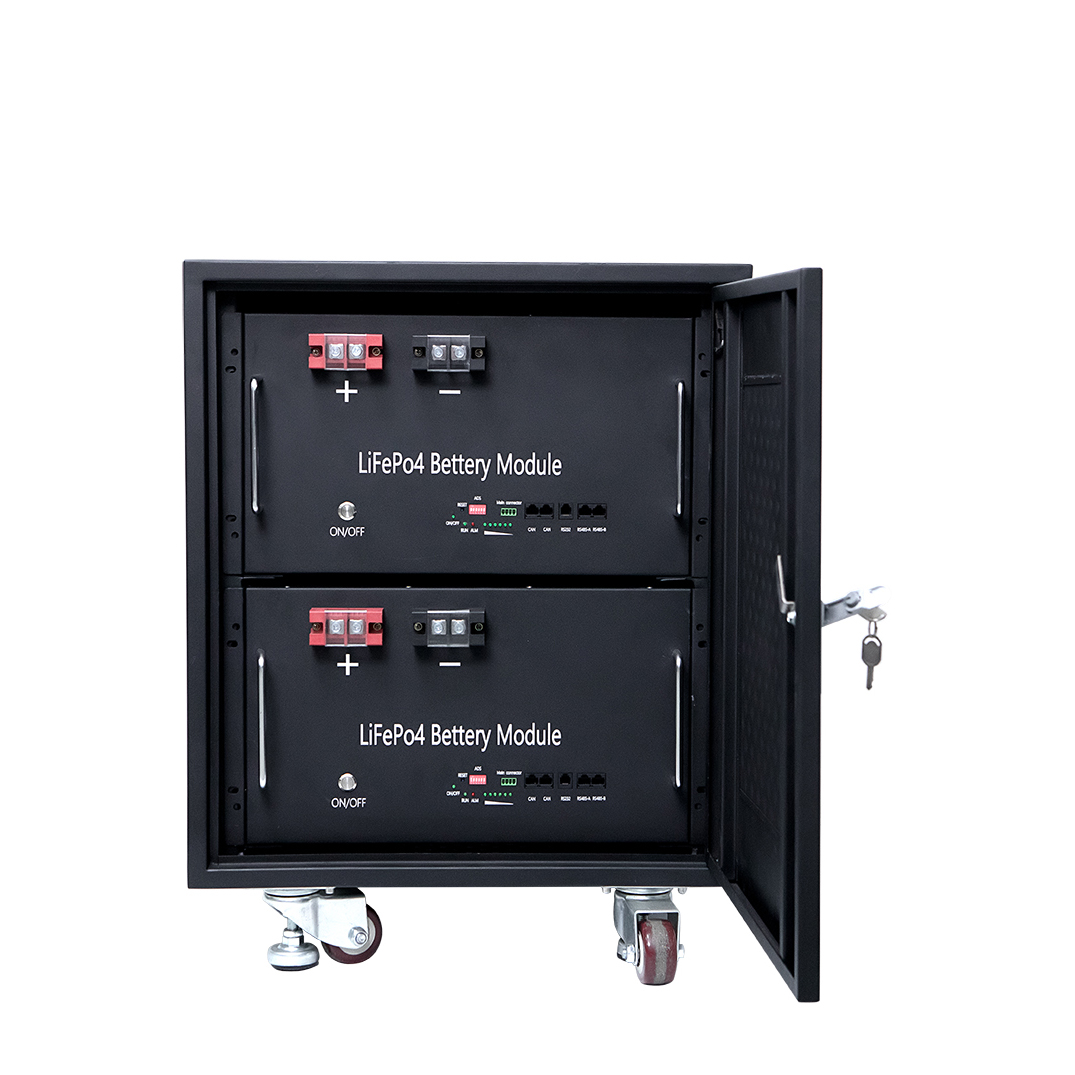

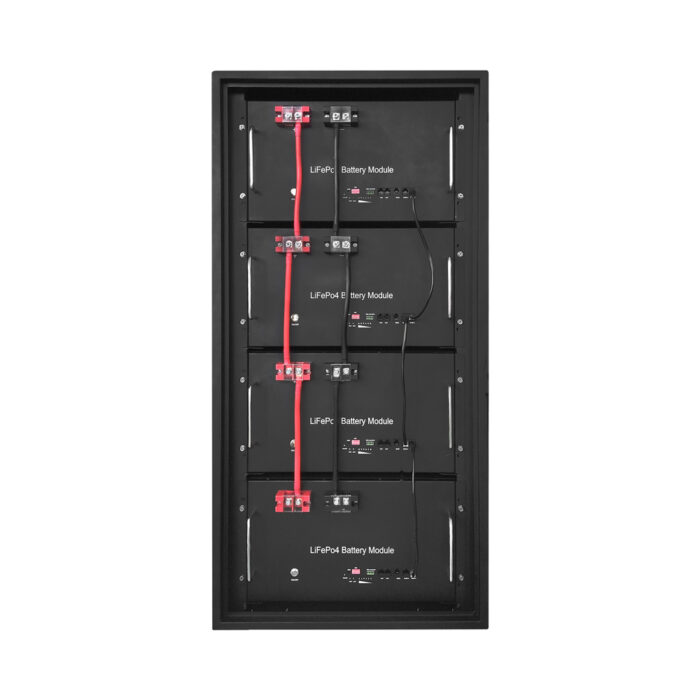

Tower Type Battery system
Efficient micro off-grid and grid-tied solutions, widely used to provide stable backup power in residential, hotel, data center, signal base station, breeding farm, greenhouse and other similar scenarios.
Made with high-quality lithium iron phosphate batteries, which have a high safety factor, less prone to thermal runaway, and can have a lifespan of up to 10 years with over 3000 cycles.
Description
Features of Tower Type Battery system
Applicable scenario
Efficient micro off-grid and grid-tied solutions, widely used to provide stable backup power in residential, hotel, data center, signal base station, breeding farm, greenhouse and other similar scenarios.
Smart BMS
Real-time protection with overcharging, over discharging, overloading, short-circuit, and over temperature protection functions to safeguard the battery.
Multiple communication
Equipped with RS232, RS485 and CAN communication interface, support for inverter and battery into line real-time communication, mutual monitoring working condition.

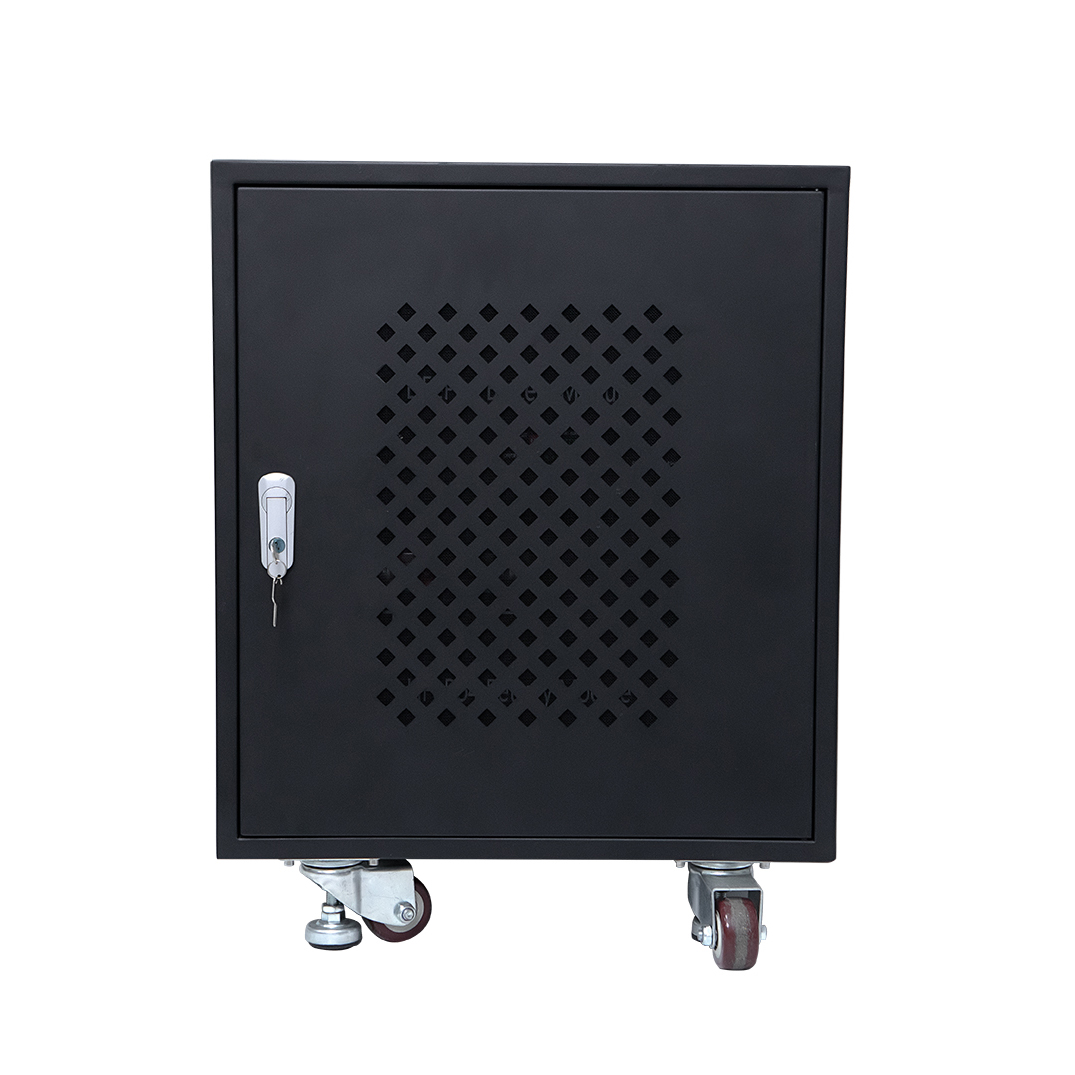

Cabinet design
Adopting a cabinet-style design, with a capacity of 5 KW per layer and low expansion costs, making installation more convenient.
LFP Battery
Made with high-quality lithium iron phosphate batteries, which have a high safety factor, less prone to thermal runaway, and can have a lifespan of up to 10 years with over 3000 cycles.
Multiple charging modes
Supports charging through various methods, including solar power, wind power, diesel, and the electricity grid.
Specifications of Tower Type Battery system
| Single layer energy storage battery | ||||||
| Model | NG-48100B | |||||
| Rated Voltage | 48V | |||||
| Nominal capacity | 100Ah | |||||
| Continuous charge current | 0-100A | |||||
| Continuous discharge Current | 0-100A | |||||
| Charging voltage | 53.6V-55.2V（Floating Charge） 56.8V-57.6V (Equalizing Charge） | |||||
| Charge termination voltage | 57.6V | |||||
| Discharge termination voltage | 40V-45V | |||||
| Cycle life | ≥3000 cycles | |||||
| Working environment | Temperature: -20°~60°; Humidity: ≤95%; Altitude ≤4000m | |||||
| Protective function | Overcharge, overdischarge, short circuit, overload, overtemperature | |||||
| Communication Interface | RS232、RS485、CAN | |||||
| Dimensions (mm) | 455×500×250 | |||||
| Weight (KGS) | 58.5 | |||||
| Multilayer energy storage battery combination | ||||||
| Number of stacks | 1 | 2 | 3 | 4 | 5 | 6 |
| Continuous charge current | 100Ah | 200Ah | 300Ah | 400Ah | 500Ah | 600Ah |
| Continuous discharge current | 0-100A | 0-200A | 0-300A | 0-400A | 0-500A | 0-600A |
| Dimension Size (mm) | 250 | 500 | 750 | 1000 | 1250 | 1500 |
| Weight (KGS) | 58.5 | 108.5 | 158.5 | 208.5 | 258.5 | 308.5 |
| Rated Capacity | 5KWh | 10KWh | 15KWh | 20KWh | 25KWh | 30KWh |
