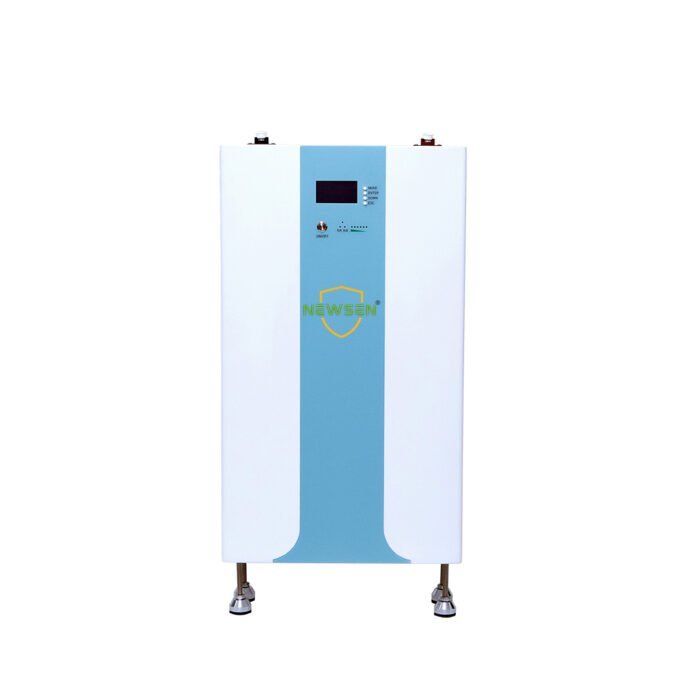

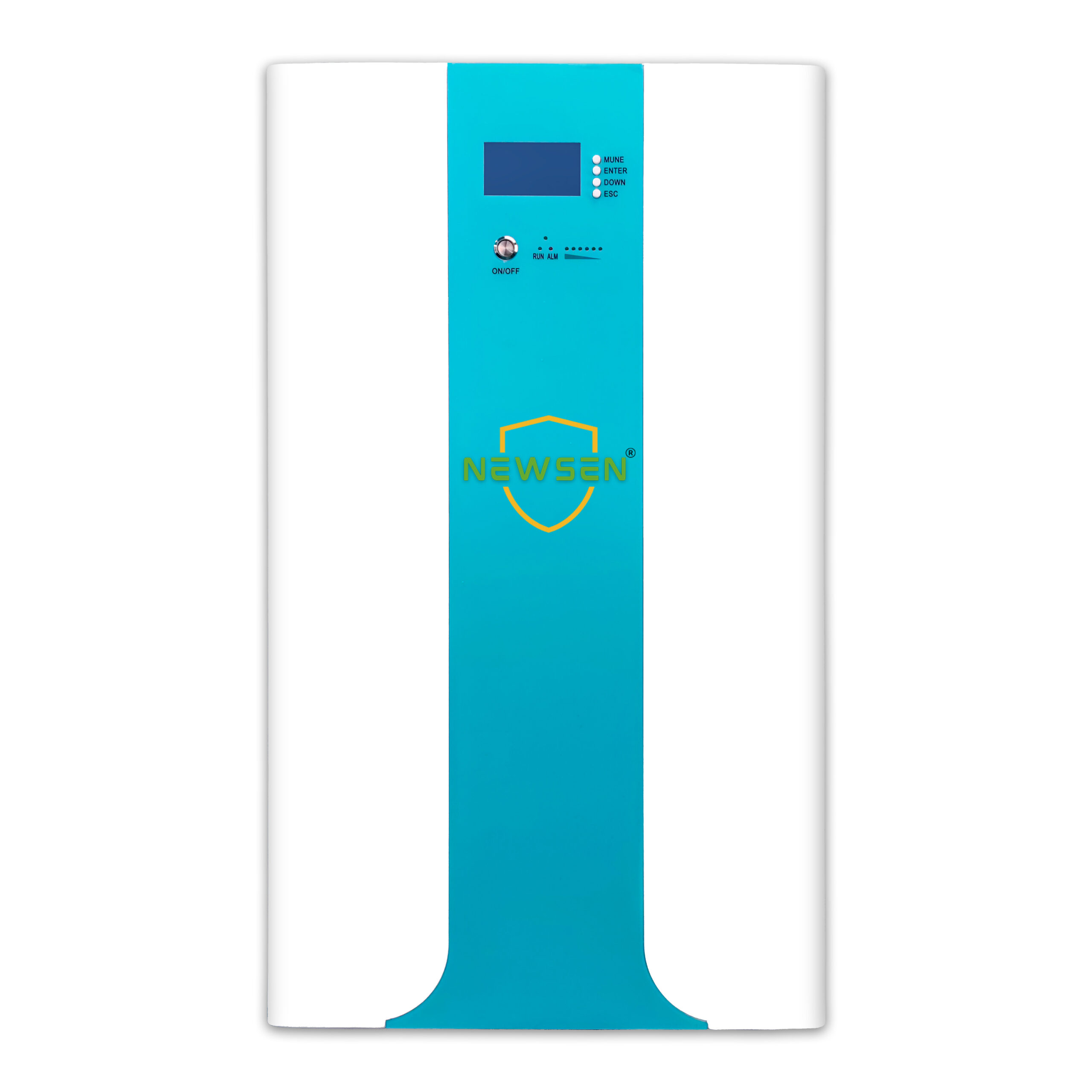

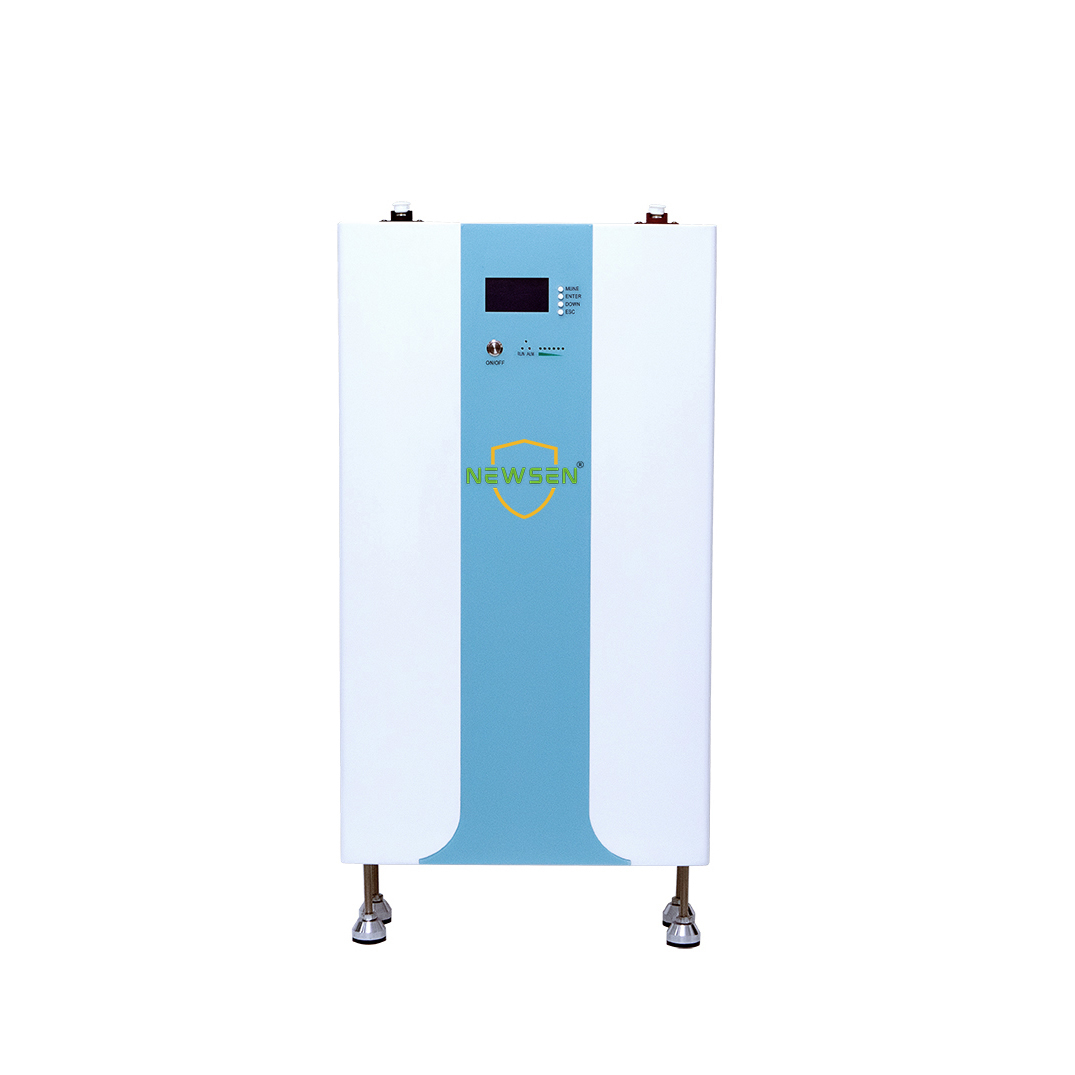

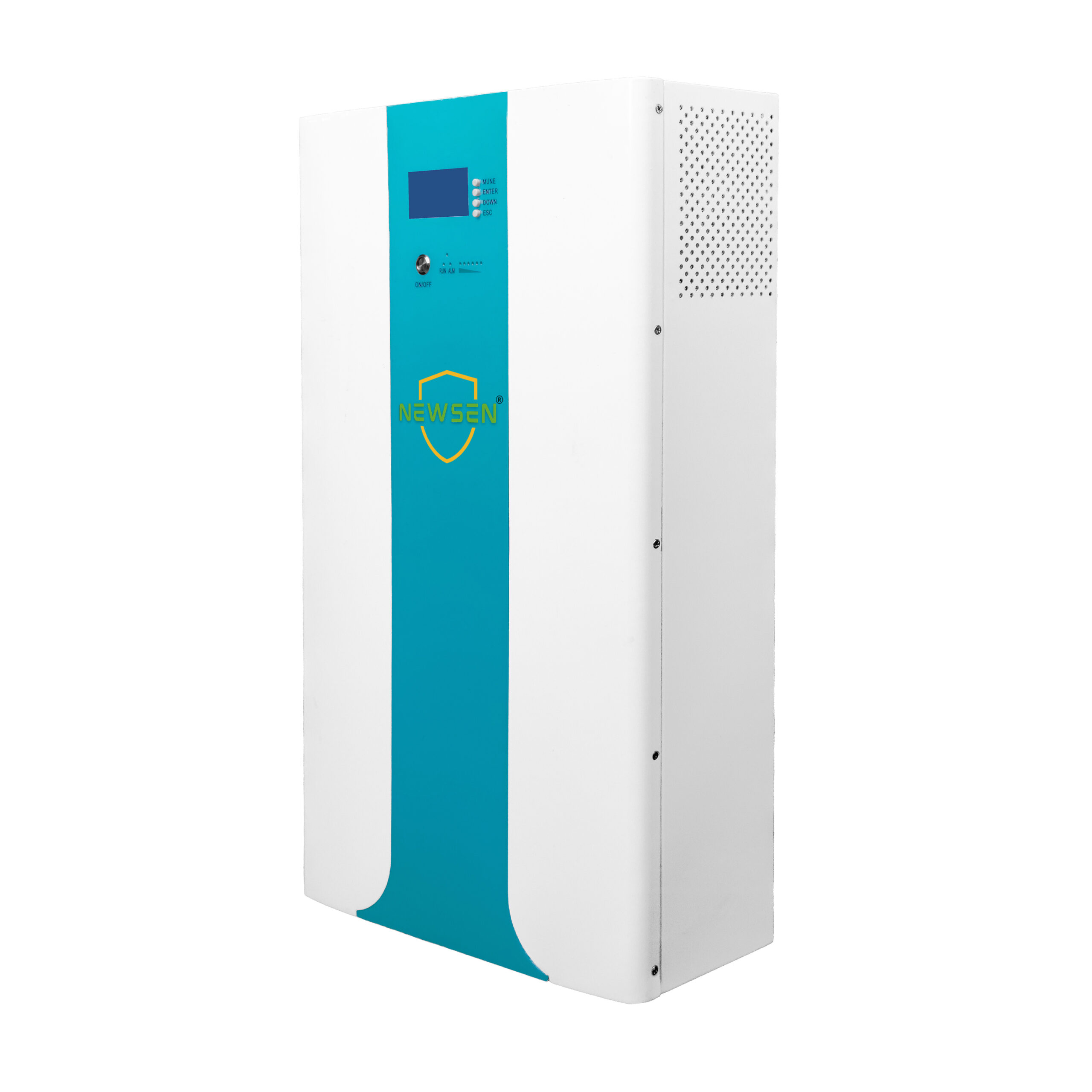

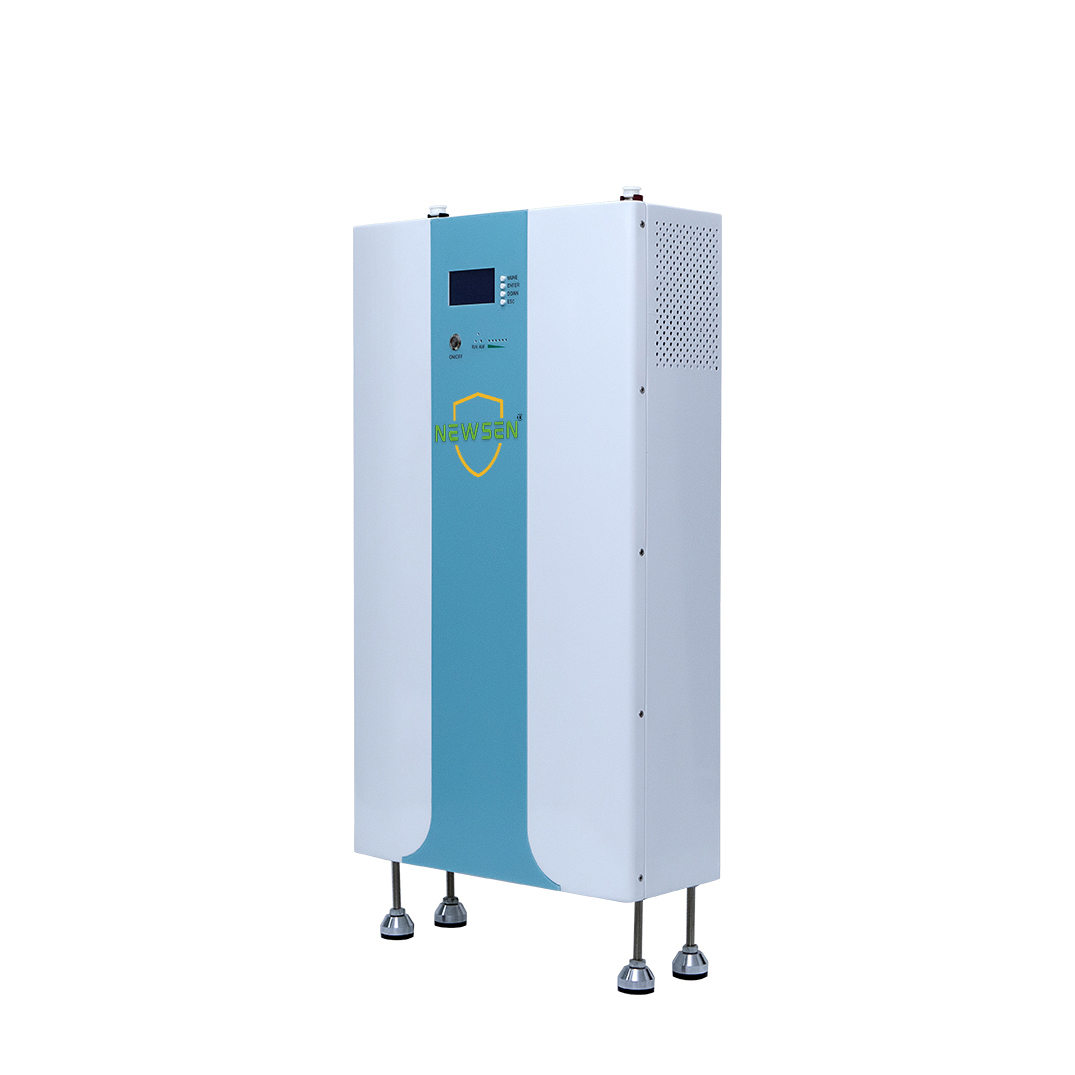

Wall-mounted Battery system
Efficient micro off-grid and grid-tied solutions, widely used to provide stable backup power in residential, hotel, data center, signal base station, breeding farm, greenhouse and other similar scenarios.
Designed with wall-mounting feature, which saves a lot precious space during installation.
Description
Features of Wall-mounted Battery system
Applicable scenario
Efficient micro off-grid and grid-tied solutions, widely used to provide stable backup power in residential, hotel, data center, signal base station, breeding farm, greenhouse and other similar scenarios.
Smart BMS
Real-time protection with overcharging, over discharging, overloading, short-circuit, and over temperature protection functions to safeguard the battery.
Multiple communication
Equipped with RS232, RS485 and CAN communication interface, support for inverter and battery into line real-time communication, mutual monitoring working condition.
Wall-mounted design
Designed with wall-mounting feature, which saves a lot precious space during installation.
LFP Battery
Made with high-quality lithium iron phosphate batteries, which have a high safety factor, less prone to thermal runaway, and can have a lifespan of up to 10 years with over 3000 cycles.
Multiple charging modes
Supports charging through various methods, including solar power, wind power, diesel, and the electricity grid.
Specifications of Wall-mounted Battery system
| Model | NWH-24200 | NWH-48200 |
| Nominal voltage | 24V | 48V |
| Nominal capacity | 200Ah | 200Ah |
| Rated energy | 5120Wh | 10240Wh |
| Continuous charge current | 0-100A | 0-100A |
| Continuous discharge current | 0-150A | 0-150A |
| Charging voltage | 26.5V-27.5V (Floating charge ) 28V-29.5V (Equalizing charge) | 53.6V-55.2V (Floating charge) 56.8V-57.6V (Equalizing charge) |
| Charge termination voltage | 29.6V | 57.6V |
| Discharge termination voltage | 20V-23V | 40-44.8V |
| Appearance Size (mm) | 720*380*160 | 720*420*160 |
| Weight (KGS) | 38.5 | 70.5 |
| Cycle life | ≥3000 | |
| Work environment | Temperature: -20°~60°; Humidity: ≤ 95%; At an altitude of 4000 m or less | |
| Protection function | Over-charge, over-discharge, short circuit, overload, over temperature | |
| Communication interface | RS232、RS485、CAN | |
