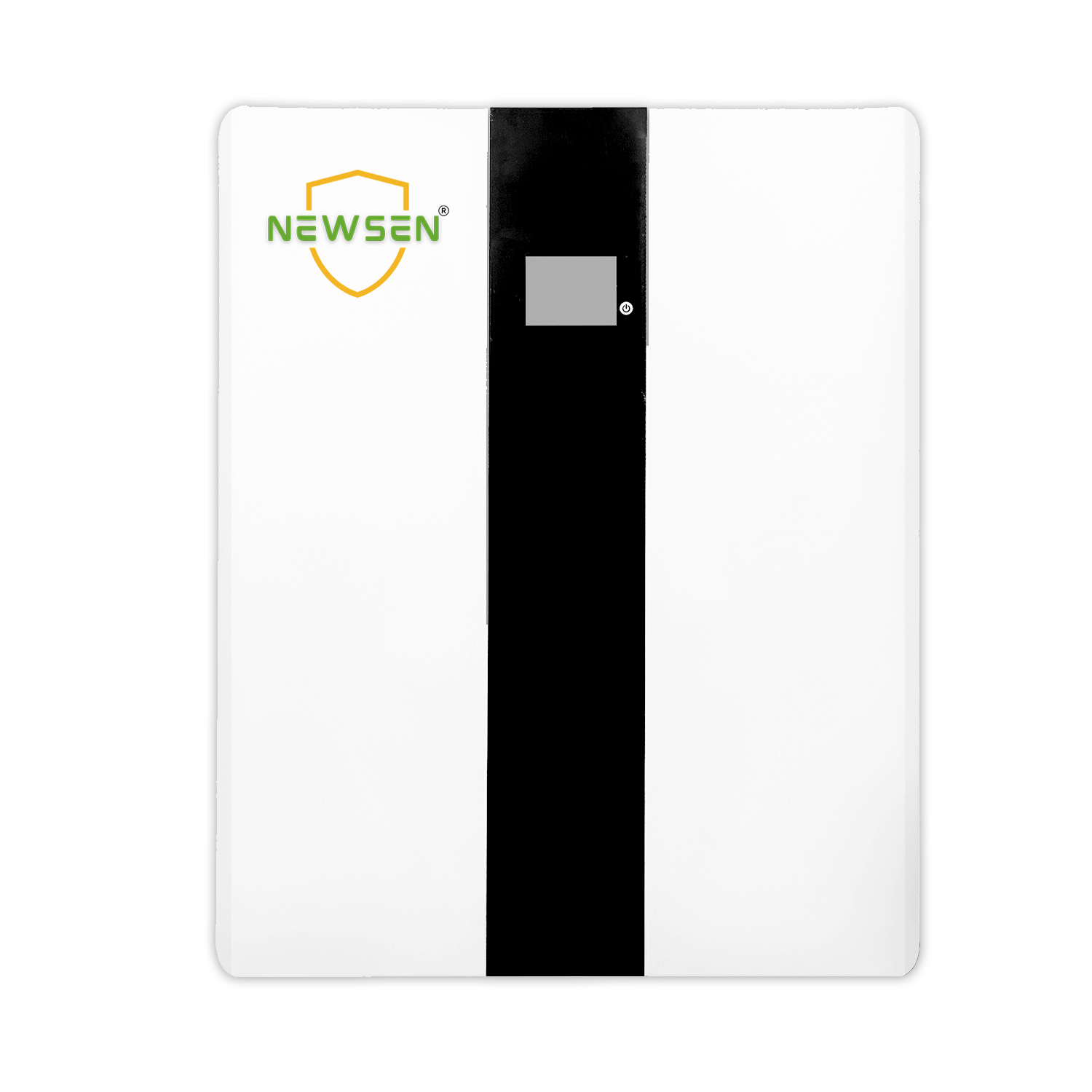

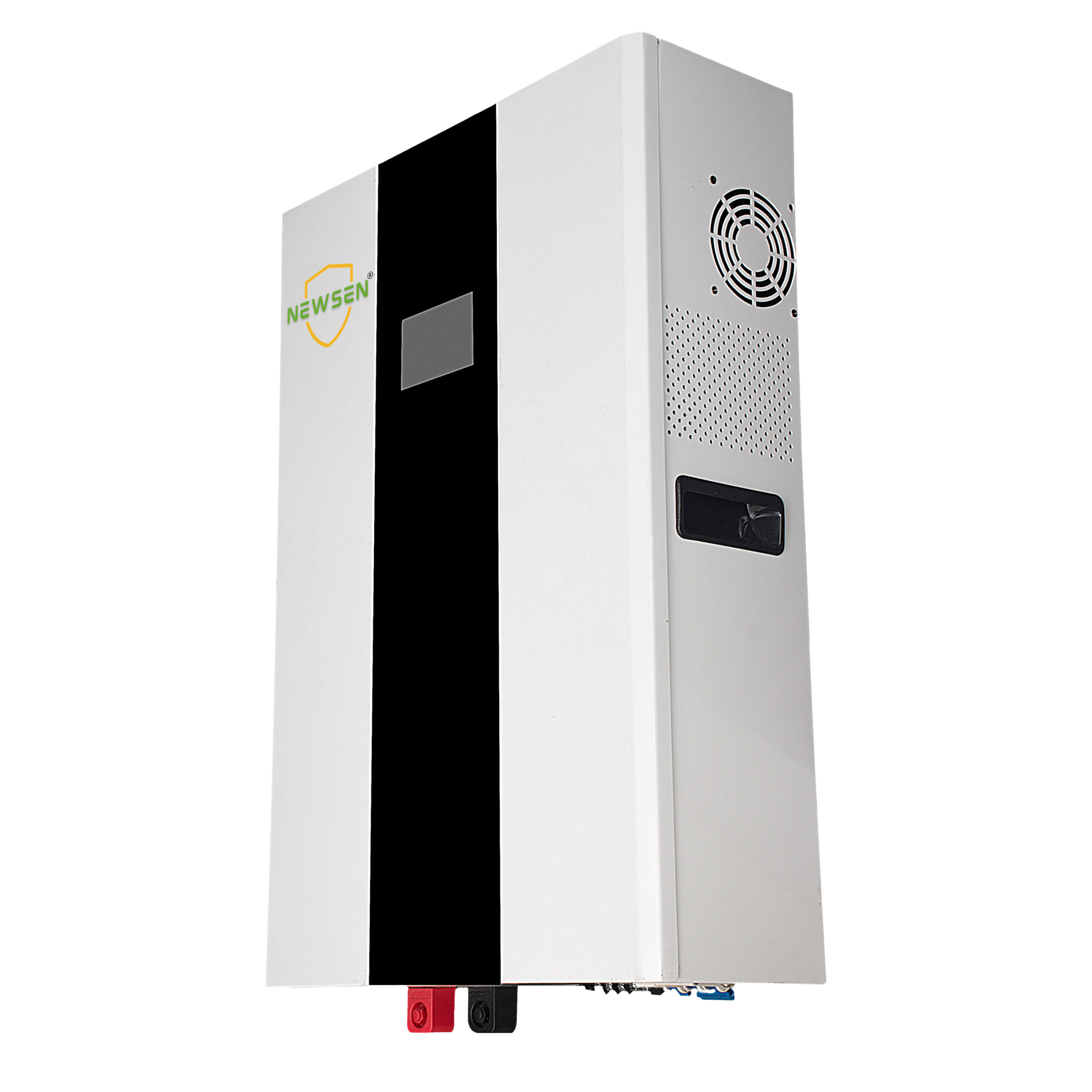

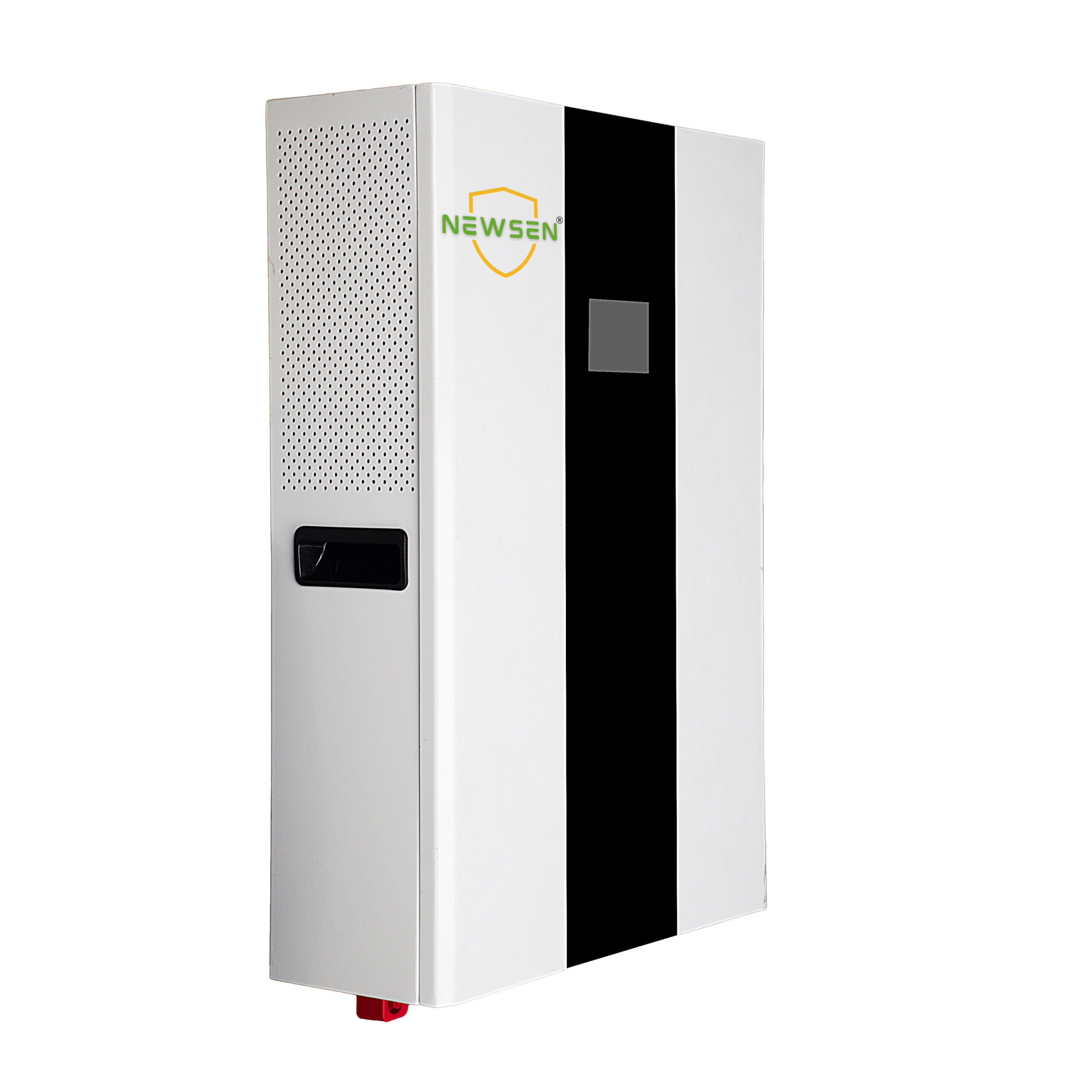

Wall-mounted All-in-one Energy Storage System
High-powered at 1000W output, perfect for outdoor photography, filming, construction work, residential power outages, night market booth equipment, and temporary power supply needs while on-the-go.
Real-time protection with overcharging, over discharging, overloading, short-circuit, and over temperature protection functions to safeguard the battery.
Description
Features of Wall-mounted All-in-one Energy Storage System
Applicable scenario
High-powered at 1000W output, perfect for outdoor photography, filming, construction work, residential power outages, night market booth equipment, and temporary power supply needs while on-the-go.
Smart BMS
Real-time protection with overcharging, over discharging, overloading, short-circuit, and over temperature protection functions to safeguard the battery.
Multiple output interface
Built-in 3000W inverter, 4KWh battery, integrated wall-mounted design, can better save space.
LCD smart display
LCD smart display, real-time reading work data.
LFP Battery
Made with high-quality lithium iron phosphate batteries, which have a high safety factor, less prone to thermal runaway, and can have a lifespan of up to 10 years with over 3000 cycles.
Multiple charging modes
Supports charging through various methods, including solar power, wind power, diesel, and the electricity grid.
Specifications of Stackable energy storage system
| Model | NME-AL3000 | NME-AL5000 |
| Nominal voltage | 25.6V | 51.2 |
| Nominal capacity | 160Ah | 100 |
| Rated energy | 4KWh | 5KWh |
| Cycle life | ≥3000 times | |
| Work environment | Temperature: -20°~60°; Humidity: ≤95%; Altitude ≤4000m | |
| Protection function | Overcharge, overdischarge, short circuit, overload, overtemperature | |
| Inverter | ||
| Rated power | 3KW | 5KW |
| Input voltage | 165VAC-260VAC | |
| Input frequency | 45Hz-60Hz | |
| Output voltage | 110/120/220/230/240VAC | |
| Frequency of output | 50Hz-/60Hz | |
| Output waveform | Pure Sine Wave | |
| Protection function | High voltage/overload/over-discharge/over-charge, etc | |
| Size (mm) | 645×455×175 | |
| Weight (KG) | 46.2 | 61.25 |
