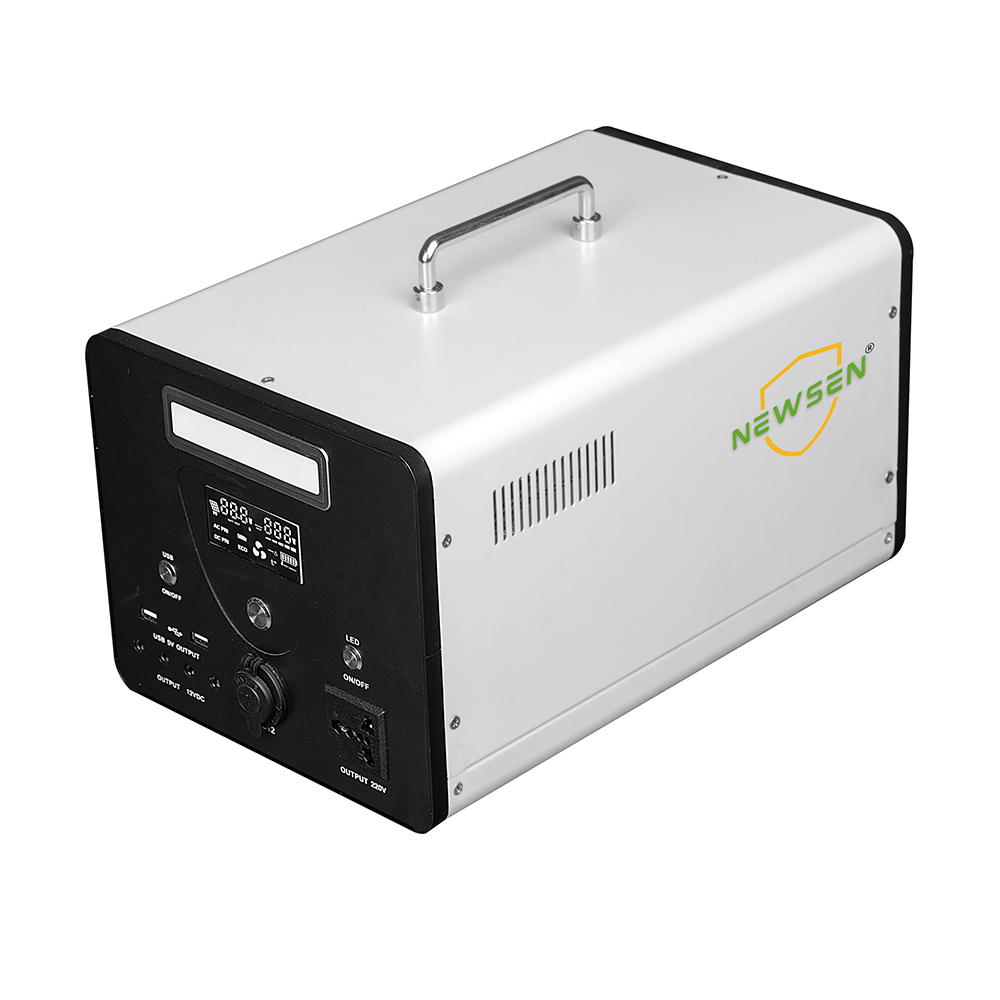

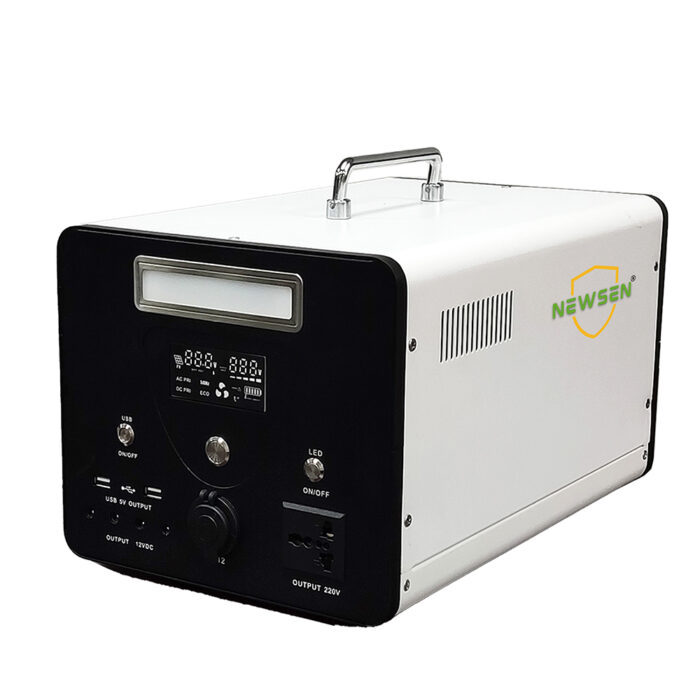

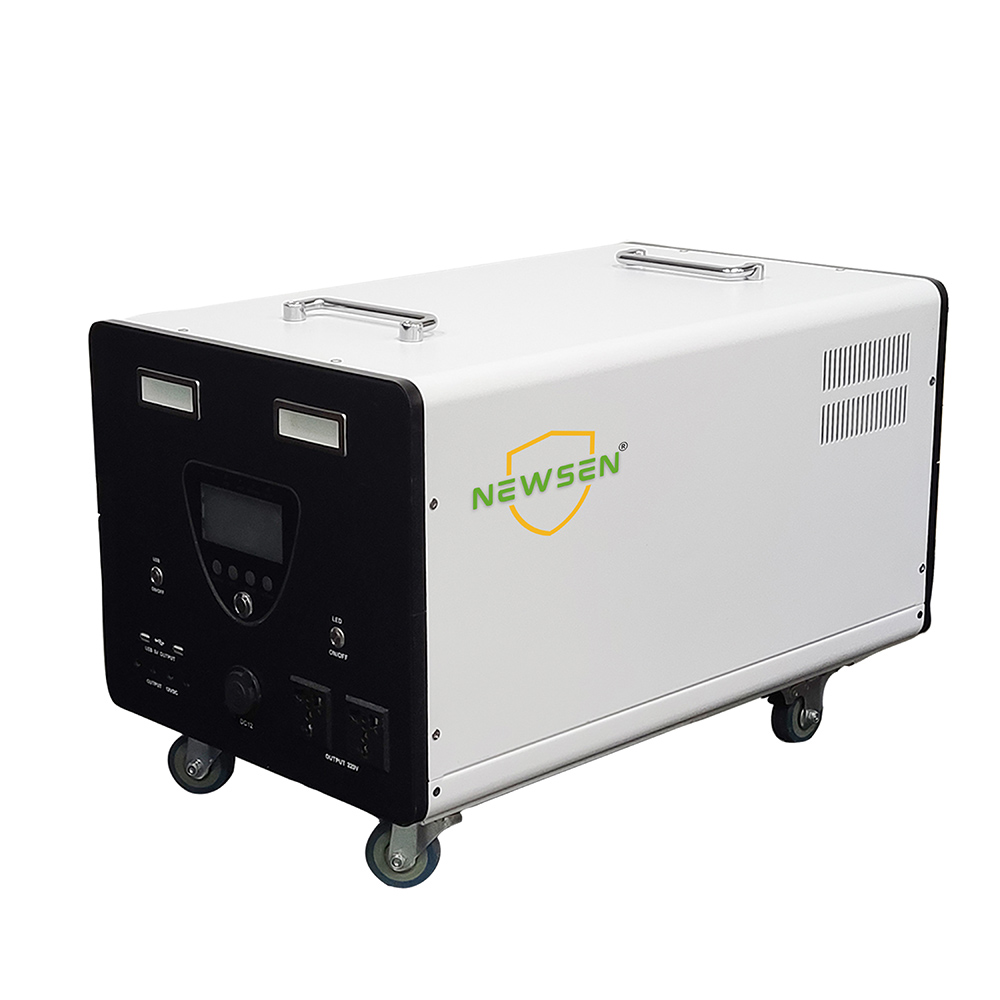

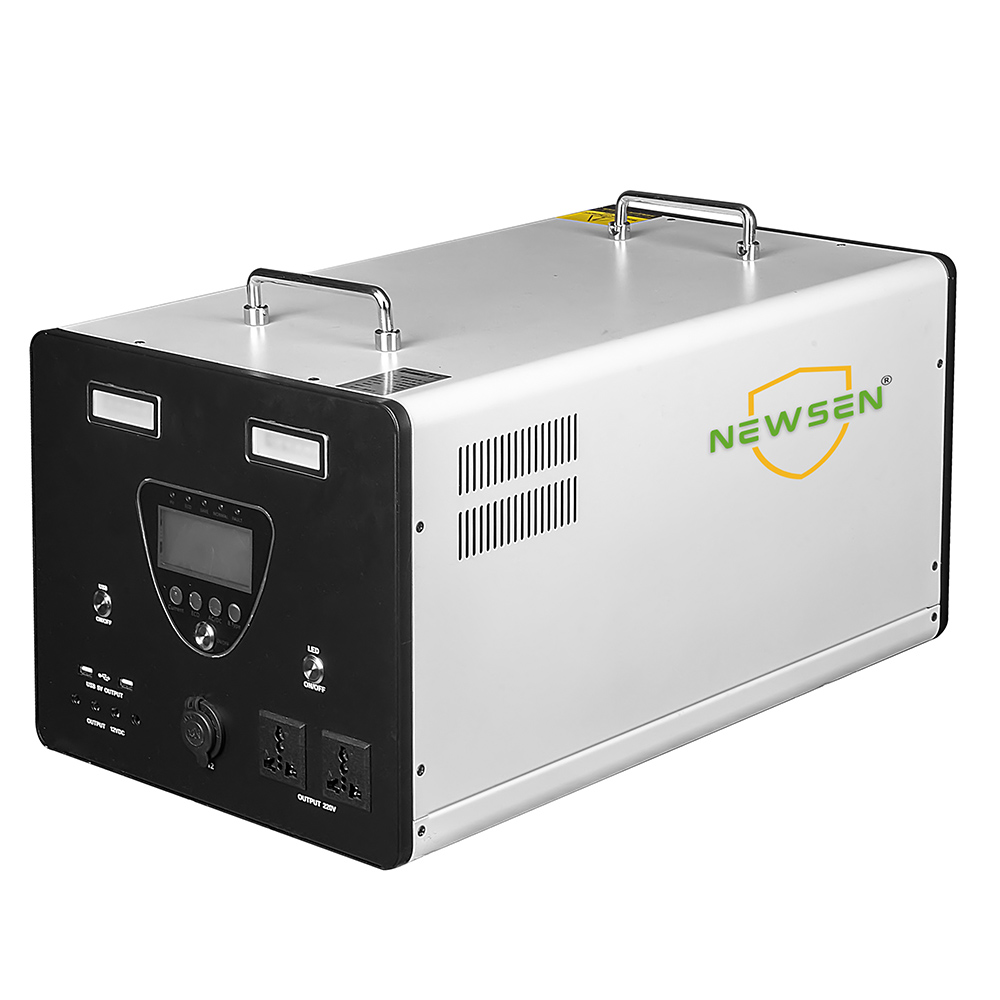

Portable energy storage system
Widely used in outdoor or emergency electricity, suitable for camping, outdoor work, market stalls and other temporary electricity scenarios.
Real-time protection with overcharging, over discharging, overloading, short-circuit, and over temperature protection functions to safeguard the battery.
Description
Features of Portable energy storage system
Applicable scenario
Widely used in outdoor or emergency electricity, suitable for camping, outdoor work, market stalls and other temporary electricity scenarios.
Smart BMS
Real-time protection with overcharging, over discharging, overloading, short-circuit, and over temperature protection functions to safeguard the battery.
Multiple output interface
Three-hole socket ×2, USB×2, LED lamp ×2, 12VDC round hole ×4, LCD display ×1, cigarette lighter ×1, EC5×1.
LFP Battery
Made with high-quality lithium iron phosphate batteries, which have a high safety factor, less prone to thermal runaway, and can have a lifespan of up to 10 years with over 3000 cycles.
Specifications of Portable energy storage system
| Model | NP-500W | NP-1500W | NP-2000W | NP-4000W |
| Nominal Voltage | 12.8V | 12.8V | 25.6V | |
| Nominal Capacity | 50Ah | 120Ah | 160Ah | 160Ah |
| Battery | ||||
| High Voltage Protection | 17.6V | 35.2V | ||
| High Voltage Recovery | 16.8V | 33.6V | ||
| Undervoltage Protection | 10.8V | 21.6V | ||
| Brownout Recovery | 13.6V | 27.2V | ||
| Charging Voltage | 14.8V | 29.6V | ||
| Inverter | ||||
| Grid Input Voltage | 165-265VAC | |||
| Mains Input Frequency | 45-65Hz | |||
| Solar Input Voltage | 18~36V | 28~36V | ||
| Controller Output Current | 30A | 30A | ||
| Voltage Range | 220VAC;±5％（Inverter mode） | |||
| Frequency | 50Hz±1％（Inverter mode） | |||
| Output Waveform | Pure Sine Wave | |||
| Conversion Time | ＜10ms（Typical load） | |||
| Efficiency | ＞85％（80％Resistive load） | |||
| Overload | 110-120％/30S；＞160％/300ms | |||
| Protective Function | Over voltage, low voltage, overload, short circuit, over temperature, etc. | |||
| Dimensions (mm) | 393.5*240*215 | 480*320*250 | 575*338*300 | |
